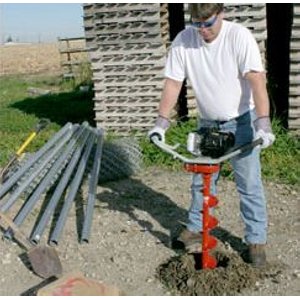

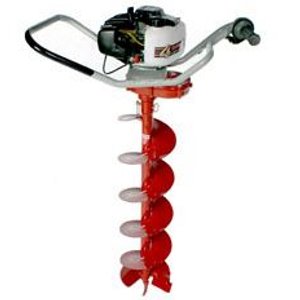

One Man Auger

The first one-man hole digger to feature an all-position 4 stroke gasoline engine. Operate on the side of a hill, or store on its side without fear of damage or oil leaking from the crankcase. No mixing oil with gasoline or the need for two gasoline cans. The Comfort-Zone® operator handle helps maximize leverage and control, whith reduces fatigue while increasing productivity and job site safety.

POWER SOURCE

• Type: Subaru EH035V, All- Position, 4 Stroke
• Horse Power: 1.6 (1180 W)
• Starter: Hand rewind
• Fuel: Gasoline, unleaded automotive grade

TRANSMISSION

• Type: Totally-enclosed, grease- lubricated
• Nominal Auger Rotation Speed: 166 RPM, no load
• Clutch: 3" (76mm) diameter all-metal automatic-centrifugal, slips on overload.
• Drive shaft Connection: 1" (25mm) round
• Maximum Drilling Torque: 55 ft. lbs. (74 N.m)

AUGER

• Diameter: 2" (51mm) to 8" (203mm)
• Extention: Non-flighted plain tube, depth to 45" (1143mm)
