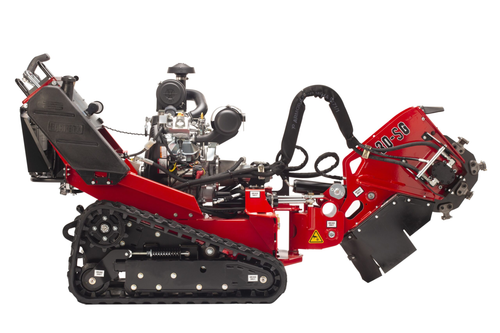

Barreto 30SGH Stump Grinder
Barreto 30SGH Stump Grinder
Engine: Honda iGX800, 30 hp
DETAILS:
Height: 49.5″
Length (head to side): 79″
Length (head straight): 98″
Width: 35.5″
Weight: 1,700 lb.
Hydraulic Reservoir: 14 gallons
Hydraulic Flow to Head: 13.3gpm
Track Width: 7.1″
Total Ground Contact: 470 sq. in.
Ground Drive Forward: 290 ft/min
Ground Drive Reverse: 180 ft/min
Length (head to side): 79″
Length (head straight): 98″
Width: 35.5″
Weight: 1,700 lb.
Hydraulic Reservoir: 14 gallons
Hydraulic Flow to Head: 13.3gpm
Track Width: 7.1″
Total Ground Contact: 470 sq. in.
Ground Drive Forward: 290 ft/min
Ground Drive Reverse: 180 ft/min
WHEEL SPECIFICATIONS
Cutting Wheel: 19.2″ diameter to tooth
Cutting Teeth: 0.750 thick, 16 green teeth
Cutting Depth: 12″
Cutting Height: 32″
Head Swing: 134˚, 99.7″ arc
Cutting Wheel: 19.2″ diameter to tooth
Cutting Teeth: 0.750 thick, 16 green teeth
Cutting Depth: 12″
Cutting Height: 32″
Head Swing: 134˚, 99.7″ arc
